Ophthalmoscopes

Heine Opthalmoscopes

Heine represents quality. Their products are made in Germany, in Heine’s own manufacturing facilities. Most of their products are guaranteed for 5 years (except for batteries and cables).
The Heine Ophthalmoscope range consists of the following:
– 4x Fibre Optic Illumination models: Beta 200S, Beta 200, K180 and mini 3000.

Down load the Heine Ophthalmoscope Catalogue
Ask a Question or request a Quote

HEINE BETA® 200S F.O. Ophthalmoscope

  • Top of the range model.
  • Aluminium frame system.
  • Exclusive Aspherical Optical System (AOS) eliminates corneal and iris reflexes to provide large, crisp and glare-free fundus images.
  • 28 single lenses Rekoss Disc -36 to + 38 D.
  • 74 single step design on a non-continuous wheel.
  • 7 apertures.
  • Stepless dimming from 3% to 100% with one-finger operation.
  • LED or Halogen light.
  1. HEINE BETA® 200S Ophthalmoscope Diagnostic Kits – No Case
  • Battery Handle
  • USB Rechargeable Handle
  • BETA battery handle with Halogen light: C-010.10.118
  • BETA4 USB rechargeable handle with Halogen light: C-010.27.388
  • BETA4 USB rechargeable handle with Table Charger, LED light: C-010.28.388

2. HEINE BETA® 200S Ophthalmoscope Diagnostic Sets – With Case

  • Battery Handle
  • USB Rechargeable Handle
  • Rechargeable Handle / Table Charger
  • BETA battery handle with Halogen light: C-261.10.118
  • BETA4 USB rechargeable handle with Halogen light: C-261.27.388
  • BETA4 USB rechargeable handle with LED light: C-261.28.388
  • BETA4 NT rechargeable handle with Table Charger, Halogen light: C-261.23.420
  • BETA4 NT rechargeable handle with Table Charger, LED light: C-261.24.420

3. HEINE BETA® 200S Ophthalmoscope – Head Only Options

  • For BETA battery handle with Halogen light, no accessories: C-001.30.120
  • For BETA4 USB & NT rechargeable handles with Halogen light, no accessories: C-002.30.120
  • For BETA4 USB & NT rechargeable handles with LED light, no accessories: C-008.30.120

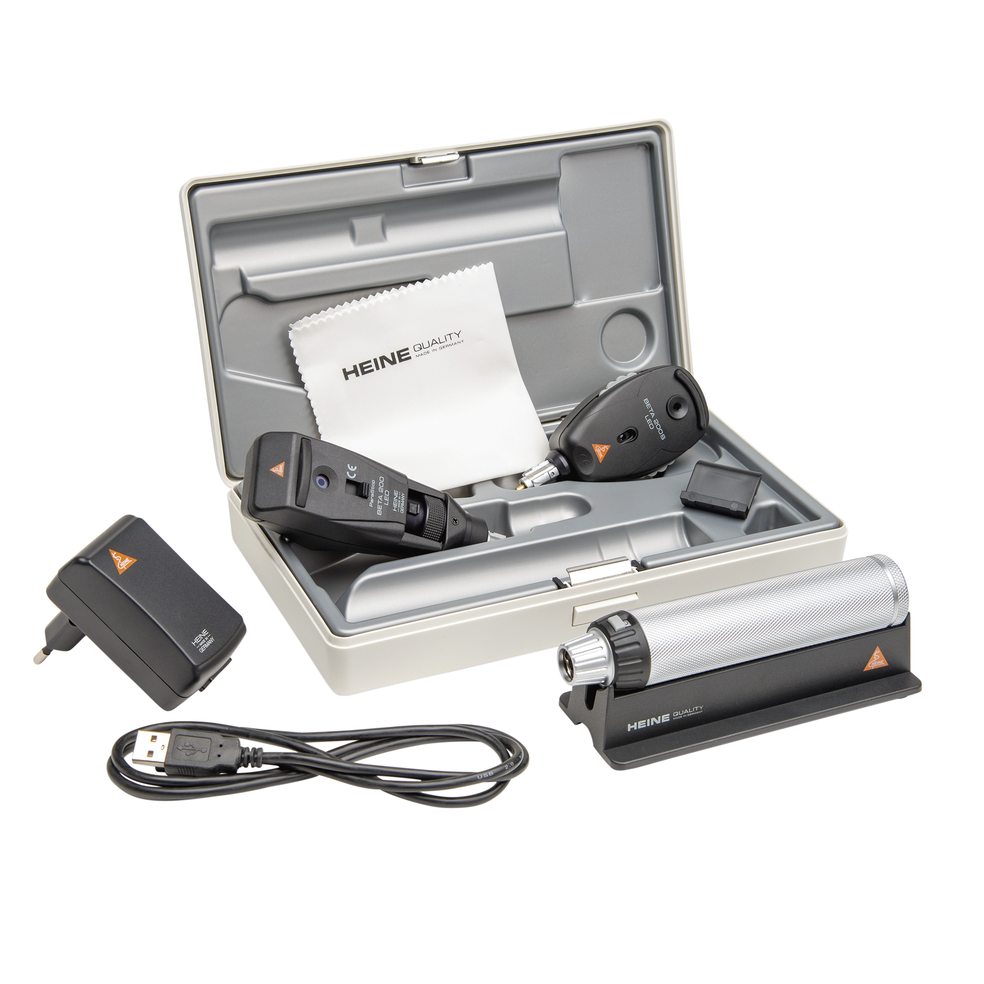

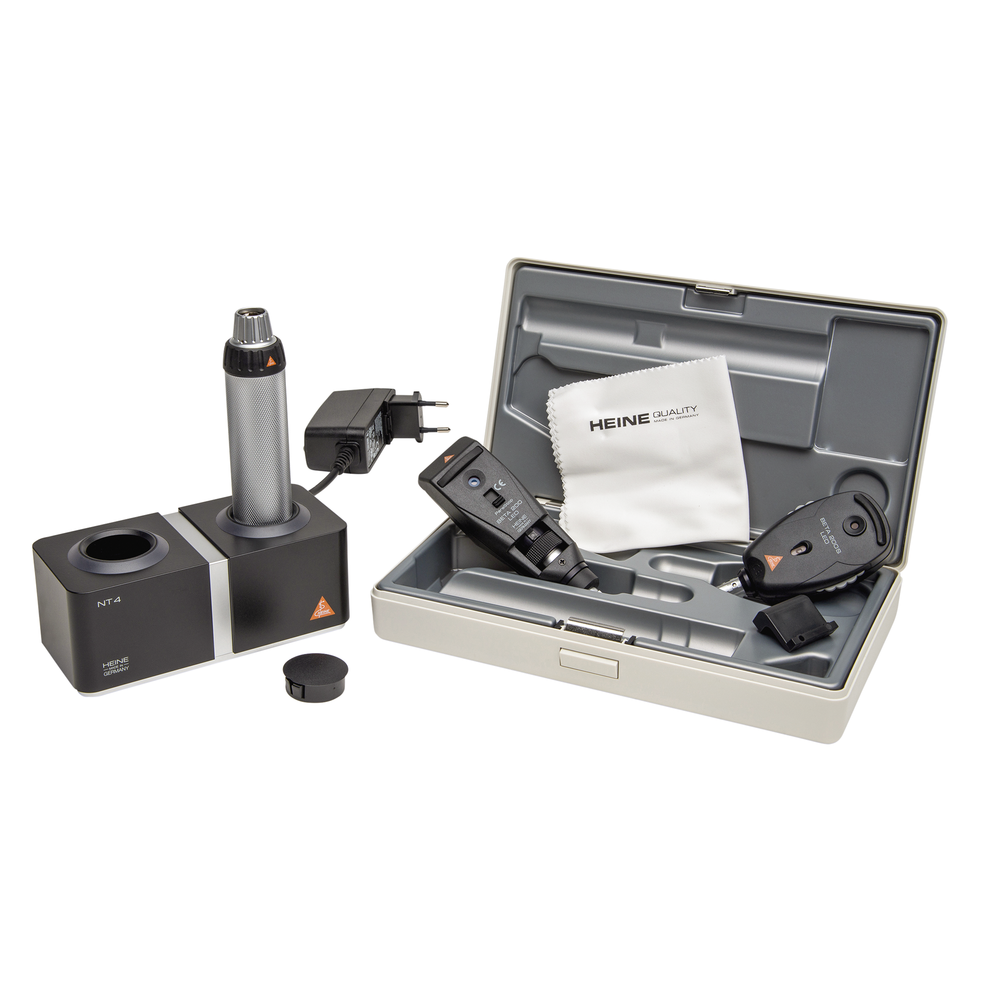

4. BETA 200S Ophthalmoscope and BETA 200 Streak Retinoscope Diagnostic Sets

  • Battery Handle Halogen
  • USB Rechargeable Handle
  • Rechargeable Handle / Table Charger
  • BETA battery handle with Halogen light: C-262.10.118
  • BETA4 USB rechargeable handle with Halogen light: C-262.27.388
  • BETA4 USB rechargeable handle with LED light: C-262.28.388
  • BETA4 NT rechargeable handles with Table Charger, Halogen light: C-262.23.420
  • BETA4 NT rechargeable handles with Table Charger, LED light: C-262.24.420

HEINE BETA® 200 Ophthalmoscope

  • Aluminium frame system.
  • Exclusive Aspherical Optical System (AOS) eliminates corneal and iris reflexes to provide large, crisp and glare-free fundus images.
  • Stepless dimming from 3% to 100% with one-finger operation.
  • LED or Halogen light.
  • Differences to Beta 200S above:
    • 27 single lenses Rekoss Disc 35 to + 40 D, 27 diopter steps.
    • 6 apertures.
    • Without macula aperture (pinhole).
  1. HEINE BETA® 200 Ophthalmoscope Diagnostic Kits – No Case
  • Battery Handle
  • USB Rechargeable Handle
  • BETA battery handle with Halogen light: C-011.10.118
  • BETA4 USB rechargeable handle with Halogen light: C-011.27.388
  • BETA4 USB rechargeable handle with LED light: C-011.28.388

2. HEINE BETA® 200 Ophthalmoscope Diagnostic Sets – With Case

  • Battery Handle
  • USB Rechargeable Handle
  • Rechargeable Handle / Table Charger
  • BETA battery handle with Halogen light: C-144.10.118
  • BETA4 USB rechargeable handle with Halogen light: C-144.27.388
  • BETA4 USB rechargeable handle with LED light: C-144.28.388
  • BETA4 NT rechargeable handle with Table Charger, Halogen light: C-144.23.420
  • BETA4 NT rechargeable handle with Table Charger, LED light: C-144.24.420

3. HEINE BETA® 200 Ophthalmoscope – Head Only Options

  • For BETA battery handle with Halogen light, no accessories: C-001.30.100
  • For BETA4 USB & NT rechargeable handles with Halogen light, no accessories: C-002.30.100
  • For BETA4 USB & NT rechargeable handles with LED light, no accessories: C-008.30.100

4. BETA 200 Ophthalmoscope & BETA 200 or 400 F.O. Otoscope Diagnostic Sets

  • Battery Handle Halogen
  • USB Rechargeable Halogen
  • USB Rechargeable LED
  • Rechargeable Halogen – Table Charger
  • Rechargeable LED – Table Charger
  • With Beta 200 F.O. Otoscope
  • BETA battery handle with Halogen light: A-132.10.118
  • BETA4 USB rechargeable handle with Halogen light: A-132.27.388
  • BETA4 USB rechargeable handle with LED light: A-132.28.388
  • BETA4 NT rechargeable handles with Table Charger, Halogen light: A-132.23.422
  • BETA4 NT rechargeable handles with Table Charger, LED light: A-132.24.422
  • With Beta 400 F.O. Otoscope
  • BETA battery handle with Halogen light: A-153.10.118
  • BETA4 USB rechargeable handle with Halogen light: A-153.27.388
  • BETA4 USB rechargeable handle with LED light: A-153.28.388
  • BETA4 NT rechargeable handles with Table Charger, Halogen light: A-153.23.422
  • BETA4 NT rechargeable handles with Table Charger, LED light: A-153.24.422

5. BETA 200 Ophthalmoscope & BETA 200 or 400 F.O. Otoscope Diagnostic Kits – Wall Mounted

  • With Beta 200 F.O. Otoscope
    • with EN 200 Wall Transformer with LED light: A-095.12.219
    • with EN 200 Wall Transformer with Halogen light: A-095.12.215
  • With Beta 400 F.O. Otoscope
    • with EN 200 Wall Transformer with LED light: A-095.12.218
    • with EN 200 Wall Transformer with Halogen light: A-095.12.214

6. BETA 200 Ophthalmoscope and BETA 200 Streak Retinoscope Diagnostic Sets

  • Battery Handle Halogen
  • USB Rechargeable Handle
  • Rechargeable Handle / Table Charger
  • BETA battery handle with Halogen light: C-145.10.118
  • BETA4 USB rechargeable handle with Halogen light: C-145.27.388
  • BETA4 USB rechargeable handle with LED light: C-145.28.388
  • BETA4 NT rechargeable handles with Table Charger, Halogen light: C-145.23.420
  • BETA4 NT rechargeable handles with Table Charger, LED light: C-145.24.420

HEINE BETA® K180 Ophthalmoscope

  • A full-featured instrument at an economical price.
  • High-impact polycarbonate housing.
  • Stepless dimming from 3% to 100% with one-finger operation.
  • 27 lenses from -35 D to +40 D.
  • 5 apertures.
  • Only available with Halogen (XHL) light.

1. HEINE BETA® K180 Ophthalmoscope Diagnostic Sets – With Pouch

  • Battery Handle
  • USB Rechargeable Handle
  • Rechargeable Handle / Table Charger
  • BETA battery handle with Halogen light: C-182.10.118
  • BETA4 USB rechargeable handle with Halogen light: C-182.27.388
  • BETA4 NT rechargeable handle with Table Charger, Halogen light: C-182.23.420

2. HEINE BETA® K180 Ophthalmoscope – Head Only Options

  • For BETA battery handle with Halogen light, no accessories: C-001.30.206
  • For BETA4 USB & NT rechargeable handles with Halogen light, no accessories: C-002.30.206

3. BETA K180 F.O. Otoscope and BETA K180 Ophthalmoscope Diagnostic Sets

  • BETA battery handle with Halogen light: A-279.10.118
  • BETA4 USB rechargeable handle with Halogen light: A-279.27.388
  • BETA4 NT rechargeable handle with Table Charger with Halogen light: A-279.23.420

4. BETA K180 F.O. Otoscope & BETA K180 Ophthalmoscope Diagnostic Kits – Wall Mounted

  • with EN 200 Wall Transformer with Halogen light: A-095.12.220

HEINE mini 3000® Compact Pocket Ophthalmoscope

Ideal for rounds and house calls
Shock-resistant Polycarbonate construction.
5 different apertures.
Grey filter for light-sensitive patients.
18 lenses from -20 D to +20 D,18 diopter steps.
Attachment clip with integrated on / off switch.
LED or Halogen light

  1. HEINE mini 3000®Ophthalmoscope Diagnostic Kits – No Case
  • Battery Handle
  • Rechargeable Handle + Table Charger
  • mini 3000 battery handle with batteries with Halogen light: D-001.71.120
  • mini 3000 battery handle with batteries with LED light: D-008.71.120
  • mini 3000 rechargeable handle, needs mini NT Table Charger, Halogen light: D-001.71.200
  • mini 3000 rechargeable handle, needs mini NT Table Charger, LED light: D-008.71.200
  • mini NT Charger only: X-001.99.484

2. HEINE mini 3000®Ophthalmoscope Diagnostic Sets – With Case

  • mini 3000 battery handle with batteries with Halogen light: D-852.10.021
  • mini 3000 battery handle with batteries with LED light: D-885.21.021

3. HEINE mini 3000® Ophthalmoscope – Head Only Options

  • For mini 3000 battery & rechargeable handles with Halogen light, no accessories: D-001.71.105
  • For mini 3000 battery & rechargeable handles with LED light, no accessories: D-D-008.71.105

4. mini 3000 F.O. Otoscope and mini 3000 Ophthalmoscope Diagnostic Sets

  • Battery Handles
  • Rechargeable Handles / Table Charger
  • 2 mini 3000 battery handles with batteries and Halogen light: D-873.11.021
  • 2 mini 3000 battery handles with batteries and LED light: D-886.11.021
  • 2 mini 3000 rechargeable handles and mini NT table charger and Halogen light: D-859.11.022
  • 2 mini 3000 rechargeable handles and mini NT table charger and LED light: D-860.11.022
